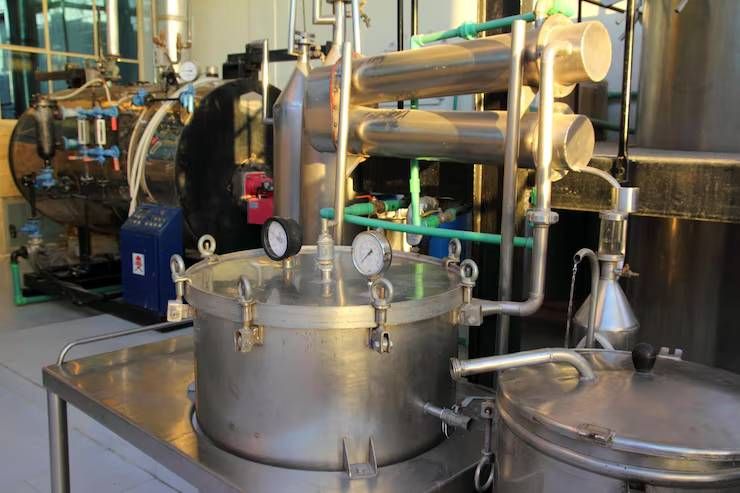

Industrial pressure vessels are engineered containers designed to hold gases or liquids at pressures that differ significantly from atmospheric pressure. They are widely used in chemical processing, oil and gas, power generation, pharmaceuticals, food processing, water treatment, and manufacturing.
Pressure vessels must be designed according to their operating pressure, temperature, fluid characteristics, materials, dimensions, corrosion conditions, and applicable regulatory requirements. Their construction typically involves engineering design, material preparation, forming, welding, inspection, testing, surface treatment, and final certification.
Why Industrial Pressure Vessels Matter
Pressure vessels allow industrial facilities to safely contain and process fluids under controlled pressure and temperature conditions.
They can support operations such as:
Chemical reactions
Fluid storage
Gas storage
Heat transfer
Separation
Mixing
Filtration
Process conditioning
Because a pressure vessel can store substantial amounts of energy, engineering design and manufacturing quality are critical considerations.
Types of Industrial Pressure Vessels
Pressure vessels can be classified according to their shape, orientation, function, and operating conditions.
Horizontal Pressure Vessels
Horizontal vessels are commonly used for storage, separation, and process applications where horizontal installation is practical.
They can incorporate supports such as saddles and may include internal components for specific process requirements.
Vertical Pressure Vessels
Vertical vessels occupy a smaller floor footprint and are frequently used in process plants, chemical facilities, and storage applications.
They can incorporate trays, separators, distributors, heating or cooling systems, and other internal components.
Storage Pressure Vessels
Storage vessels hold pressurized gases or liquids for controlled distribution or later processing.
The design depends on fluid characteristics, storage pressure, temperature, and capacity.
Process Pressure Vessels
Process vessels perform a specific manufacturing operation rather than simply storing a fluid.
Examples include:
Reactors
Separators
Absorbers
Scrubbers
Mixers
Contactors
Jacketed Pressure Vessels
Jacketed vessels include an external jacket through which heating or cooling media can circulate.
They are commonly used when process temperature must be controlled.
High-Pressure Vessels
High-pressure vessels are designed for elevated operating pressures and require appropriate materials, wall thicknesses, fabrication methods, inspection, and safety provisions.
Pressure Vessel Design Technologies
Pressure vessel design combines mechanical engineering, materials engineering, process requirements, and safety analysis.
Pressure and Temperature Design
Engineers establish the design pressure, maximum allowable working pressure, operating temperature, and design temperature.
These parameters influence material selection and wall thickness.
Finite Element Analysis
Finite element analysis can be used to examine stress distribution, deformation, thermal effects, and localized loading.
It can help engineers evaluate complex vessel geometries and nozzle configurations.
Computational Design
CAD software is commonly used to develop three-dimensional vessel models, nozzle arrangements, supports, internal components, and fabrication drawings.
Thermal Design
For vessels involving heating or cooling, engineers evaluate heat transfer, thermal gradients, insulation, and temperature-control requirements.
Corrosion Allowance
Where corrosion is expected, engineers may incorporate additional material thickness or specify corrosion-resistant materials and protective systems.
Nozzle and Opening Design
Vessel nozzles are engineered for process connections, instrumentation, relief devices, inspection access, and fluid movement.
Their placement must account for structural loads and process requirements.
Common Pressure Vessel Materials
Material selection depends on pressure, temperature, chemical compatibility, corrosion, mechanical loading, and fabrication requirements.
Carbon Steel
Carbon steel is widely used for many industrial pressure-vessel applications because of its mechanical properties and manufacturing characteristics.
Stainless Steel
Stainless steel provides improved corrosion resistance and is frequently used in chemical, pharmaceutical, food, and other process environments.
Alloy Steel
Alloy steels can provide enhanced mechanical or temperature characteristics for specialized applications.
Nickel Alloys
Nickel-based alloys can be selected for environments involving demanding corrosion or temperature conditions.
Manufacturing Process of Industrial Pressure Vessels
Pressure vessel manufacturing involves controlled fabrication and inspection procedures.
1. Engineering Design
The manufacturer establishes vessel dimensions, design pressure, temperature, material specifications, nozzle locations, support structure, and internal components.
2. Material Preparation
Steel plate, pipe, forgings, flanges, fittings, and other components are prepared according to engineering drawings and material specifications.
Material certificates may be reviewed to verify chemical composition and mechanical properties.
3. Plate Cutting
Plates can be cut using CNC plasma, laser, waterjet, or other industrial cutting technologies.
4. Plate Forming
Flat plates are rolled or formed into cylindrical or conical sections.
Specialized forming equipment is used to achieve the required geometry.
5. Head Forming
Pressure-vessel heads can be produced using pressing, spinning, hot forming, or other controlled forming methods.
Common head configurations include:
Ellipsoidal heads
Hemispherical heads
Torispherical heads
Flat heads
6. Welding
Welding joins shell sections, heads, nozzles, supports, and other components.
Common processes include:
SMAW
GMAW
GTAW
SAW
Automated welding
Welding procedures and welder qualifications are important parts of pressure-vessel fabrication.
7. Heat Treatment
Some materials and vessel designs require post-weld heat treatment to manage residual stresses or achieve specified material properties.
8. Inspection and Non-Destructive Testing
Inspection methods may include:
Visual inspection
Ultrasonic testing
Radiographic testing
Magnetic particle testing
Liquid penetrant testing
Dimensional inspection
The applicable inspection methods depend on vessel design, material, code requirements, and project specifications.
9. Pressure Testing
Hydrostatic testing is commonly used to verify vessel integrity. Pneumatic testing may be used under controlled conditions where appropriate.
10. Surface Treatment
The completed vessel may undergo blasting, painting, coating, passivation, lining, or insulation according to its operating environment.
Pressure Vessel Codes and Standards
Pressure vessels are subject to applicable regulations and engineering standards depending on their location, design, application, and jurisdiction.
The ASME Boiler and Pressure Vessel Code is widely used for pressure-vessel design and fabrication in many industrial applications.
Other standards and regulatory frameworks can apply depending on the country and vessel type.
Manufacturers and purchasers should establish the applicable code and regulatory requirements before engineering begins.
Automation and Monitoring
Modern pressure vessels can incorporate extensive instrumentation and automated monitoring.
Typical instruments include:
Pressure transmitters
Temperature sensors
Level sensors
Flow meters
Safety relief devices
Control valves
Process analyzers
A PLC, DCS, or other control platform can monitor process conditions and coordinate valves, pumps, heating systems, cooling systems, and other equipment connected to the vessel.
Industrial Pressure Vessel Comparison
| Vessel Type | Primary Function | Typical Applications |
|---|---|---|
| Horizontal Vessel | Storage or process containment | Chemical and industrial plants |
| Vertical Vessel | Storage or processing | Process industries |
| Storage Vessel | Pressurized fluid storage | Gas and liquid handling |
| Process Vessel | Controlled process operation | Chemical manufacturing |
| Reactor Vessel | Chemical reaction | Chemical and pharmaceutical plants |
| Jacketed Vessel | Heating or cooling | Process manufacturing |
| Separator Vessel | Phase separation | Oil, gas, chemical processing |
| High-Pressure Vessel | Elevated-pressure containment | Specialized industrial processes |
Factors Affecting Industrial Pressure Vessel Cost
Pressure vessel cost depends on engineering requirements and manufacturing complexity.
Important factors include:
Vessel volume
Design pressure
Operating temperature
Material selection
Wall thickness
Vessel geometry
Nozzle quantity and size
Internal components
Welding requirements
Heat treatment
Inspection and testing
Surface treatment
Insulation
Automation and instrumentation
Applicable certification requirements
Custom vessels can require substantially different engineering and fabrication processes from standard configurations.
Global Manufacturers and Suppliers
The industrial pressure vessel market includes specialized vessel manufacturers, process-equipment companies, engineering firms, fabrication companies, and industrial suppliers.
When evaluating a pressure vessel manufacturer or supplier, organizations can examine:
Design capabilities
Fabrication capacity
Applicable codes and certifications
Material capabilities
Welding qualifications
Inspection procedures
Non-destructive testing capabilities
Pressure-testing procedures
Documentation
Delivery requirements
Installation and integration capabilities
For large process plants, procurement teams may evaluate the pressure vessel as part of a complete process system.
Industrial Applications
Chemical Processing
Pressure vessels are used for reactors, separators, storage, mixing, absorption, and other chemical processing operations.
Oil and Gas
The oil and gas industry uses pressure vessels for separation, gas processing, storage, filtration, and other process operations.
Power Generation
Pressure vessels can be incorporated into power-generation systems, heat-transfer processes, steam-related equipment, and auxiliary systems.
Pharmaceutical Manufacturing
Pharmaceutical facilities use specialized vessels for controlled mixing, reaction, storage, filtration, and process operations.
Food and Beverage
Pressure-rated vessels can be used for processing, mixing, heating, sterilization, and controlled storage.
Water and Wastewater
Pressure vessels can support filtration, water treatment, compressed-air systems, and specialized treatment processes.
Industrial Manufacturing
Manufacturing facilities use pressure vessels for compressed gases, chemical processing, thermal operations, and specialized production systems.
How to Select an Industrial Pressure Vessel
1. Define the Process
Identify what fluid or material the vessel will contain and what process operation will occur inside it.
2. Establish Design Conditions
Determine operating and design pressure, temperature, flow conditions, and required volume.
3. Select Materials
Evaluate corrosion resistance, mechanical strength, temperature capability, chemical compatibility, and fabrication requirements.
4. Determine Vessel Geometry
Select horizontal, vertical, cylindrical, spherical, or specialized geometry according to process and space requirements.
5. Specify Internal Components
Determine whether the vessel requires agitators, trays, coils, distributors, demisters, baffles, or other internals.
6. Define Inspection Requirements
Establish applicable non-destructive testing, pressure testing, documentation, and certification requirements.
7. Evaluate Integration
Confirm compatibility with pumps, piping, valves, instrumentation, control systems, and plant utilities.
8. Review Maintenance and Access
Consider inspection openings, manways, drainage, cleaning requirements, internal access, and component replacement.
Frequently Asked Questions
What is an industrial pressure vessel?
An industrial pressure vessel is an engineered container designed to hold gases or liquids at a pressure significantly different from atmospheric pressure.
What are the main types of pressure vessels?
Common types include horizontal vessels, vertical vessels, storage vessels, process vessels, reactor vessels, separator vessels, jacketed vessels, and high-pressure vessels.
What materials are used for pressure vessels?
Carbon steel, stainless steel, alloy steel, and specialized alloys such as nickel-based materials can be used depending on operating conditions.
How are pressure vessels manufactured?
Manufacturing generally involves engineering design, material preparation, plate cutting, forming, welding, heat treatment where required, inspection, non-destructive testing, pressure testing, and surface finishing.
What standards apply to pressure vessels?
Applicable standards depend on the jurisdiction, vessel type, application, and project requirements. ASME BPVC is one widely used pressure-vessel code, while other regional and international standards may also apply.
Conclusion
Industrial pressure vessels are critical components in many process and manufacturing facilities where fluids or gases must be contained under controlled pressure and temperature conditions.
Their design and manufacture require careful consideration of pressure, temperature, materials, corrosion, vessel geometry, welding, inspection, testing, and applicable regulatory requirements. Technologies such as CAD, finite element analysis, automated welding, non-destructive testing, and digital process monitoring support modern pressure-vessel engineering.
Understanding vessel types, design technologies, manufacturing processes, materials, applicable standards, and industrial applications provides a foundation for specifying pressure vessels appropriate to particular process requirements.
