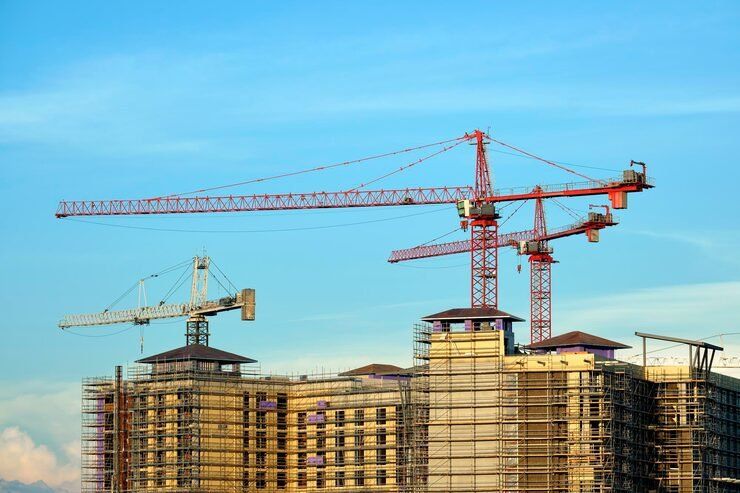

Tower cranes are tall lifting machines used to move heavy materials vertically and horizontally on construction sites. They are commonly seen during the construction of high-rise buildings, commercial complexes, bridges, and large infrastructure projects. Their height, lifting capacity, and ability to reach across wide working areas make them important equipment for modern construction.
A typical tower crane consists of a vertical tower, a horizontal jib, a counter-jib, a lifting mechanism, a slewing unit, and an operator's cabin or remote control system. The jib supports the load-handling equipment, while the counter-jib carries counterweights and machinery that help balance the crane. Depending on the design, the crane may be anchored to a foundation, attached to a building, or supported by a mobile base.
Tower cranes developed alongside the growth of urban construction and the need to lift building materials to greater heights. As buildings became taller and construction projects more complex, crane designs evolved to support heavier loads, more precise movements, and improved operating controls. Modern tower cranes combine mechanical engineering, electrical systems, structural components, and safety technologies.
How tower cranes operate
A tower crane lifts materials using a hoist motor, wire rope, and hook block. The trolley moves along the horizontal jib to position the load, while the slewing mechanism rotates the crane to reach different areas of the site. The operator coordinates these movements to transport materials such as steel sections, concrete buckets, reinforcement bars, and construction components.
Crane capacity depends on several factors, including the crane model, jib length, lifting height, and distance between the tower and the suspended load. A crane generally cannot lift its maximum rated load at every point along the jib. Operators must follow the manufacturer's load charts and operating instructions.
Main components of a tower crane
The principal components include:
Tower mast: The vertical steel structure that provides height and supports the upper assembly.
Jib: The horizontal arm along which the load trolley moves.
Counter-jib: The rear arm that supports counterweights and machinery.
Hoist system: The motor, wire rope, and pulley arrangement used to raise and lower loads.
Slewing unit: The mechanism that rotates the upper crane assembly.
Trolley system: The assembly that moves the suspended load along the jib.
Foundation and anchoring system: The structural arrangement that transfers crane loads safely into the ground or supporting structure.
Each component must work within specified structural and operating limits to maintain stability during lifting activities.
Importance
Tower cranes are important because construction projects often require materials to be moved to locations that cannot be reached efficiently using ground-based equipment. They help coordinate the movement of structural steel, formwork, reinforcement, concrete, and prefabricated components across large construction areas.
Their ability to serve multiple floors from a fixed position can also help organize construction activities. However, safe operation requires careful planning, suitable ground or structural support, qualified personnel, and coordination with other site activities.
Construction applications of tower cranes
Tower cranes are used in a variety of construction environments.
High-rise buildings: Moving reinforcement steel, formwork, structural components, and other materials between floors.
Commercial developments: Supporting the construction of offices, shopping complexes, hotels, and mixed-use buildings.
Residential projects: Lifting materials for apartment buildings and large housing developments.
Infrastructure construction: Supporting selected bridge, transport, and public infrastructure projects where crane configuration is suitable.
Industrial facilities: Positioning structural steel and heavy components during the construction of factories and large facilities.
Precast construction: Moving prefabricated concrete panels and other components within their rated lifting limits.
The crane type must match the project's height, lifting requirements, site conditions, available space, and construction schedule.
Benefits and operational challenges
Tower cranes provide considerable vertical reach and can cover a broad working area. Their fixed installation can reduce the need to repeatedly reposition lifting equipment as construction progresses. Certain models can also be raised progressively as a building grows.
Nevertheless, tower cranes require detailed installation planning and regular inspection. Wind, restricted visibility, nearby structures, electrical hazards, suspended loads, and ground conditions can affect safe operation. Crane movements must be coordinated with workers, vehicles, and other lifting equipment to reduce the risk of collisions and dropped loads.
Recent Updates
Tower crane technology continues to develop through improvements in electronic controls, monitoring systems, lifting mechanisms, and installation methods. Current developments emphasize operational visibility, equipment condition monitoring, improved precision, and the integration of digital tools into construction management.
Smart crane technologies
Modern tower cranes may incorporate load monitoring, anti-collision systems, wind-speed sensors, electronic load indicators, and operating data recorders. These technologies can help operators and site managers understand equipment conditions and identify situations requiring attention.
Anti-collision systems are particularly relevant when multiple cranes operate within overlapping working areas. Depending on the system, sensors and control software can monitor crane positions, jib movements, and restricted zones. Such systems support safe coordination but do not replace proper planning, operator judgment, or site supervision.
Automation and remote monitoring
Some crane systems use cameras, digital displays, and remote monitoring tools to improve the operator's view of lifting activities. Electronic controls can also provide smoother movement and more precise positioning of suspended loads.
Remote monitoring may allow maintenance teams to review selected operating parameters and identify unusual equipment behavior. The availability of these features varies by manufacturer and crane model, and not every tower crane includes advanced digital capabilities.
Energy efficiency and modern manufacturing
Crane manufacturers continue to develop electric drive systems, improved motor controls, and equipment designs intended to manage energy use during operation. Variable-frequency drives can regulate motor speed, supporting controlled acceleration and deceleration in compatible systems.
Manufacturing processes also increasingly use computer-aided design, structural simulation, precision machining, and automated fabrication equipment. These methods can support dimensional accuracy and component consistency, while finished cranes still require appropriate inspection, testing, and verification against applicable specifications.
Laws or Policies
Tower crane installation and operation are subject to safety requirements that vary by country, construction activity, crane design, and site conditions. Regulations may address equipment design, lifting capacity, operator qualifications, inspection schedules, installation procedures, maintenance, and workplace risk management.
Tower crane regulations in India
In India, applicable requirements may arise from occupational safety legislation, state-specific factory or building regulations, construction-related rules, electrical safety requirements, and relevant technical standards. The Occupational Safety, Health and Working Conditions Code, 2020, is part of India's occupational safety framework; the applicable provisions depend on commencement, implementing rules, and the circumstances of the project.
Construction employers and contractors must identify the requirements applicable to their activities and locations. Depending on the project, responsibilities may include ensuring that cranes are installed according to approved procedures, that operators and rigging personnel are appropriately competent, and that equipment is inspected and maintained.
International standards and safety practices
International standards and technical guidance may help manufacturers, contractors, and inspection organizations establish consistent safety practices.
Relevant references can include:
ISO standards: Applicable standards may address cranes, lifting equipment, terminology, design, and testing.
EN 14439: A European standard addressing safety requirements for tower cranes.
Occupational safety guidance: National workplace safety authorities may publish guidance on crane operation, lifting plans, inspection, and hazard control.
Manufacturer documentation: Load charts, installation instructions, maintenance schedules, and operating manuals define important equipment-specific requirements.
The legal status of a standard varies by jurisdiction. A standard may become mandatory through legislation, regulations, contractual requirements, or an applicable conformity process. Compliance should therefore be evaluated against the rules governing the particular construction project.
Tools and Resources
Tower crane planning involves structural calculations, load assessment, site layout, equipment selection, and maintenance management. Engineers and construction managers use technical documents and digital tools to assess whether a crane configuration is suitable for a particular project.
Crane selection and planning tools
Common resources include:
Load charts: Show the permitted lifting capacity under specified configurations and working radii.
Crane configuration software: Supports planning for jib length, hook height, lifting capacity, and installation arrangements.
Building information modeling (BIM): Helps coordinate crane positions with building structures, access routes, and other site equipment.
Structural analysis software: Supports the engineering assessment of tower sections, foundations, ties, and supporting structures.
Maintenance management systems: Record inspections, repairs, component replacements, and scheduled maintenance.
Wind monitoring instruments: Measure wind conditions that may affect crane operation and lifting decisions.
These tools must be used according to their intended purpose and with appropriate technical oversight. Digital calculations do not remove the need to verify assumptions, structural conditions, and manufacturer specifications.
Global tower crane manufacturers
Several established manufacturers produce tower cranes for different construction environments and lifting requirements. Examples include Liebherr, Potain, Zoomlion, XCMG, and SANY.
Their product ranges differ in crane configuration, lifting capacity, maximum hook height, jib length, transport requirements, and available control systems. Equipment selection depends on the project's technical requirements, site constraints, applicable standards, and the manufacturer's documentation.
FAQs
What are the main types of tower cranes?
Common types include hammerhead tower cranes, luffing-jib tower cranes, flat-top tower cranes, and self-erecting tower cranes. Each type has a different structural arrangement and is suited to particular site conditions and lifting requirements.
How much weight can a tower crane lift?
Lifting capacity varies by crane model, configuration, jib length, and working radius. The permitted load at a particular radius must be checked against the manufacturer's load chart rather than estimated from the crane's overall size.
How are tower cranes manufactured?
Manufacturing typically involves engineering design, steel fabrication, cutting, welding, machining, surface treatment, electrical assembly, and quality inspections. Components are assembled and tested according to the applicable specifications and the manufacturer's procedures.
Which factors affect tower crane selection?
Important factors include building height, required lifting capacity, working radius, site space, ground conditions, wind exposure, installation arrangements, and the presence of nearby cranes or structures.
What safety systems are used in modern tower cranes?
Depending on the model, systems may include load indicators, overload protection, anti-collision technology, wind sensors, limit switches, emergency stops, and operating data monitoring. These systems support safe operation but require correct installation, maintenance, and use.
Conclusion
Tower cranes are essential lifting machines for many high-rise buildings, commercial developments, and infrastructure projects. Their designs range from conventional hammerhead models to luffing-jib and self-erecting configurations, each serving different construction requirements. Advances in electronic controls, monitoring systems, and manufacturing technologies continue to influence crane design and operation. Safe performance depends on suitable equipment selection, qualified personnel, proper installation, regular inspection, and compliance with applicable regulations.
